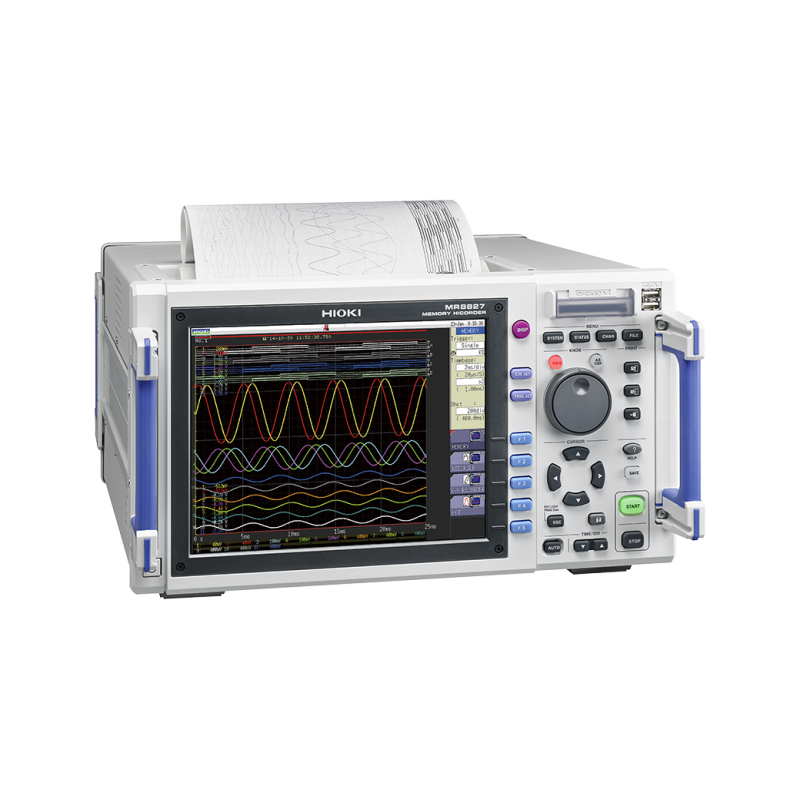

MR8827 - HIOKI High Speed Memory Recorder, 32 Analog Ch
Product Code: MR8827
Availability: 2-4 Weeks
*** Click here to view manufacturer specifications ***
|
All products ship from Toronto, Canada by courier. Shipping is usually 1-10 days depending on your location in Canada. Shipping is free of charge. Orders received before 2:00pm (Mon-Fri) will be shipped on the same day (provided item is available in stock). You can pay with all major credit cards. On our side, we use PayPal to process all credit card transactions. But on your side, it will be like any regular purchase. You do not need to create a PayPal account. From the shopping cart, simply select "PayPal / Credit Card", then select "Pay with a credit or Visa debit card". Customer satisfaction guaranteed, or your money back. RCC Electronics is proudly Canadian. We have been selling the best test equipment since 1978. |
HIOKI MR8827 - HIGH SPEED MEMORY RECORDER
| Number of channels |
[16 analog input modules]: 32 analog channels +32 logic channels [14 analog input modules + 2 logic input modules]: 28 analog channels + 64 logic * For analog modules, channels are insulated vs. each other and vs. unit ground. For logic modules and integrated standard logic channels, all channels use the unit ground. |
|---|---|
| Measurement ranges (20 div full-scale) |
[Analog unit 8966]: 5 mV/div to 20 V/div, 12 ranges, resolution : 1/100 of range (using 12-bit A/D) [High resolution unit 8968]: 5 mV/div to 20 V/div, 12 ranges, resolution : 1/1600 of range (using 16-bit A/D) [Digital voltmeter unit MR8990]: 100 mV f.s. to 1000 V f.s., 5 ranges, resolution : 1/1000,000 of range (using 24-bit A/D) |
| Max. allowable input | 500 V DC (using the MR8990), 400 V DC (using the 8966/8968) |
| Frequency characteristics | DC to 5 MHz (-3 dB, using the 8966), DC to 100 kHz (-3 dB, using the 8968), N/A (using the MR8990) |
| Time axis (Memory function) | 5 µs to 5 min/div, 26 ranges, at 100 points/div resolution |
| Measurement functions | Memory (high-speed recording), Recorder (real-time recording), X-Y recorder, FFT |
| Other functions | Numerical calculation, Waveform processing, Waveform judgment (at Memory, or FFT function) |
| Memory capacity | 128M-words/ch (using 4 Analog channels) to 16M-words/ch (using 32 Analog channels), Total capacity 512MW memory |
| Data storage media |
USB memory stick, CF card, Built-in SSD unit (option, 128GB) *Approx. 125 sec. when saving 100 MB of data *Data of 100 MB in size can record 16,000 div waveforms across 32 channels. |
| Printing | [Built-in A4-size printer option]: 216 mm (8.50 in) × 30 m (98.43 ft), thermal paper roll, Recording speed : Max. 50 mm (1.97 in)/s |
| Display | 10.4 inch TFT color LCD (SVGA, 800 × 600 dots) |
| External interfaces |
LAN: 100BASE-TX USB 2.0 series A receptacle 2 port (for USB memory, mouse) USB 2.0 series B receptacle (for communication to PC, mass storage) |
| Power supply | 100 to 240 V AC, 50/60 Hz (220 VA max., when using printer: 350 VA max.) |
| Dimensions and mass | 401 mm (15.79 in)W × 233 mm (9.17 in)H × 388 mm (15.28 in)D (including protruding parts except handle), 12.6 kg (444.4 oz) (main unit only) |
| Accessories | Instruction manual ×1, Power cord ×1, Application disk (CD-R) ×1, Input cord label ×1, Printer paper ×1 (when ordering printer unit), Roll paper attachment ×2 (when ordering printer unit) |
