Description

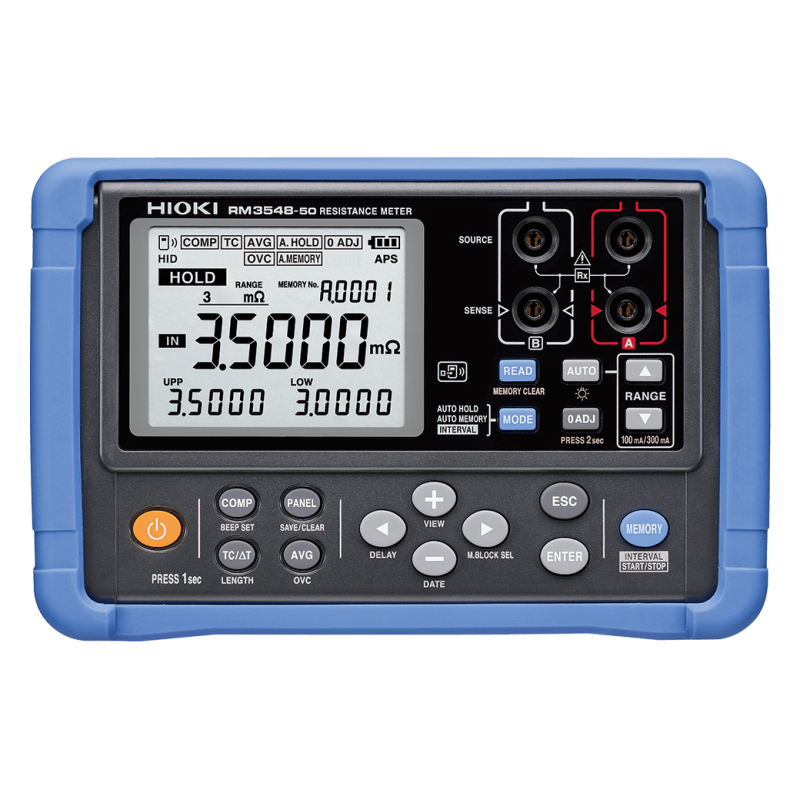

HIOKI RM3548-50

The HIOKI RM3548-50 portable resistance meter measures resistance from microohms to megaohms for maintenance of motors, transformers, connections and bonding conductors. Four-wire measurement and offset-voltage compensation support repeatable low-resistance readings.

Key Features

Ten ranges from 3 mΩ to 3 MΩ, with 0.1 μΩ best resolution.
Test current up to 1 A DC.
Temperature correction and conversion using the included Z2002 sensor.
Stores up to 1000 manual/automatic readings or 6000 interval readings.
USB data transfer; wireless transfer requires the Z3210 adapter.

Configuration: Z3210 is included in the Wireless Kit only. The EV Kit adds a 9465-11 pin type lead, two Z5020 magnetic straps and an EV maintenance manual.

Contact RCC Electronics for configuration assistance and Canadian application support.

RM3548-50 Specifications

Instrument specifications apply under HIOKI's stated measurement conditions. Kit contents are listed separately.

Resistance range	3 mΩ (3.5000 mΩ display Max., 0.1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 10 steps Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s.
Testing current	[at 3 mΩ range] 1 A DC to [at 3 MΩ range] 500 nA DC
Open-terminal voltage	5.5 V DC max.
Temperature measurement	-10.0°C to 99.9°C, accuracy: ±0.5°C (Temperature Sensor Z2002 and RM3548-50 combined accuracy)
Measurement speed	Fixed
Display refresh rate	Without OVC: approx. 100 ms With OVC: approx. 230 ms
Functions	Temperature correction, temperature conversion, offset voltage compensation (OVC), comparator (ABS/REF%), length conversion, judgment sound setting, auto hold, auto power save (APS), Averaging, panel store/panel load, USB communication interface (RM3548-50 internal memory is recognized as a mass storage device when connected to a PC), wireless communication via Bluetooth® (Z3210 is necessary)
Memory storage	Number of recordable data points: up to 1000 for manual/auto, up to 6000 for interval Interval: 0.2 s to 10.0 s (0.2 s step) Acquisition of data from memory: display, USB mass storage (CSV, TXT files)
Power supply	LR6 alkaline batteries × 8 HR6 nickel-metal hydride batteries × 8 Continuous use: approx. 10 hours (under our company’s conditions) Rated voltage: 5 VA max.
Dimensions and weight	Approx. 199 mm (7.8 in.) W × 132 mm (5.2 in.) H × 60 mm (2.4 in.) D (including the protector) Approx. 890 g (31.4 oz.) (including the batteries and protector)

HIOKI official specifications and accessories

RM3548-50 Supplied Items

This main-unit configuration is supplied with the standard items below.

Qty	Model	Included item
1	RM3548-50	portable resistance meter

Standard Accessories Supplied with the Instrument

These are supplied with the main instrument. Items already counted in the kit table are not repeated.

Qty	Model	Included item
1	L2107	Clip type lead
1	Z2002	Temperature sensor
1	Z5041	Protector
8	LR6	AA alkaline battery
1	L1003	USB cable
1	Z5043	Neck strap
1	—	Spare fuse
1	—	Instruction manual

Included versus optional: Z3210 is included in the Wireless Kit only. The EV Kit adds a 9465-11 pin type lead, two Z5020 magnetic straps and an EV maintenance manual.
