Description

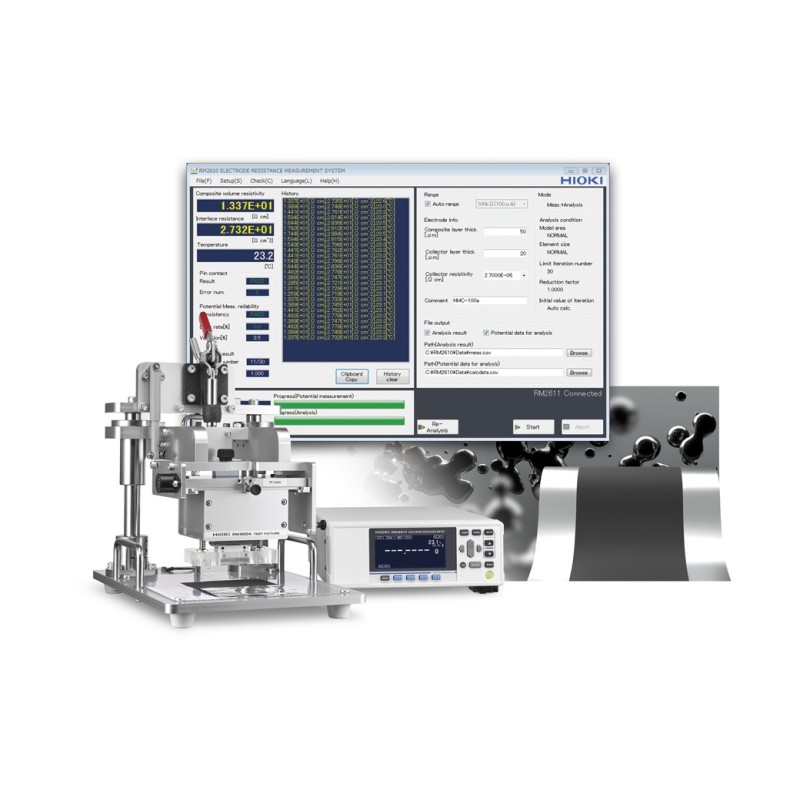

HIOKI RM2610 PRO Kit

The HIOKI RM2610 electrode resistance measurement system separates composite-layer resistivity from the interface resistance between a lithium-ion electrode coating and its current collector. It supports electrode-sheet development and production quality evaluation before cells are assembled.

Key Features

Evaluates positive and negative lithium-ion battery electrode sheets.
A 46-probe fixture measures surface potential for inverse-problem analysis.
Reports composite resistivity in Ω·cm and interface resistance in Ω·cm².
Uses coating thickness, collector thickness and collector resistivity as calculation inputs.

Configuration: A compatible Windows PC must be supplied separately. The RM9006 maintenance tool is included only in the PRO Kit.

See Accessories Included for the exact quantities supplied with this configuration.

Contact RCC Electronics for configuration assistance and Canadian application support.

RM2610 Specifications

Instrument specifications apply under HIOKI's stated measurement conditions. Kit contents are listed separately.

Measurement target	Positive and negative electrode sheets for rechargeable lithium-ion batteries
Measurement parameters	Composite resistivity [Ωcm] Interface resistance (contact resistance) between the composite layer and current collector [Ωcm^2]
Computation method	Inverse problem analysis of potential distribution using the finite volume method
Information necessary for computation	• Composite layer thickness [μm] (for 1 side) • Current collector thickness [μm] • Current collector volume resistivity [Ωcm]
Measurement time	- Contact check + potential measurement : approx. 30 sec. - Calculation : approx. 35 sec. (on a PC with Intel core i5-7200U CPU) The measurement time may vary depending on the measurement target and the processing capacity of the PC.
Measurement current	1 μA (min.) to 10 mA (max.)
Number of probes	46
Recommended PC specifications	CPU: 4 or more threads RAM: 8 GB or greater (4 GB required) Operating system: Windows 11
Temperature measurement function	Measures temperature near the test fixture

HIOKI official specifications and accessories

RM2610 PRO Kit Contents

The following quantities describe this kit configuration.

Qty	Model	Included item
1	RM2611	Electrode resistance meter
1	RM2612	Resistance calculation software
1	RM9003	Press unit
1	RM9004	Test fixture
1	RM9005	Connection cable
1	RM9006	Maintenance tool for electrode probes

Standard Accessories Supplied with the Instrument

These are supplied with the main instrument. Items already counted in the kit table are not repeated.

Qty	Model	Included item
1	Z2001	Temperature sensor
1	—	USB cable
1	—	USB license key
1	—	Probe check board
1	—	Power cord
1	—	Instruction manual

Included versus optional: A compatible Windows PC must be supplied separately. The RM9006 maintenance tool is included only in the PRO Kit.

HIOKI official specifications and accessories
