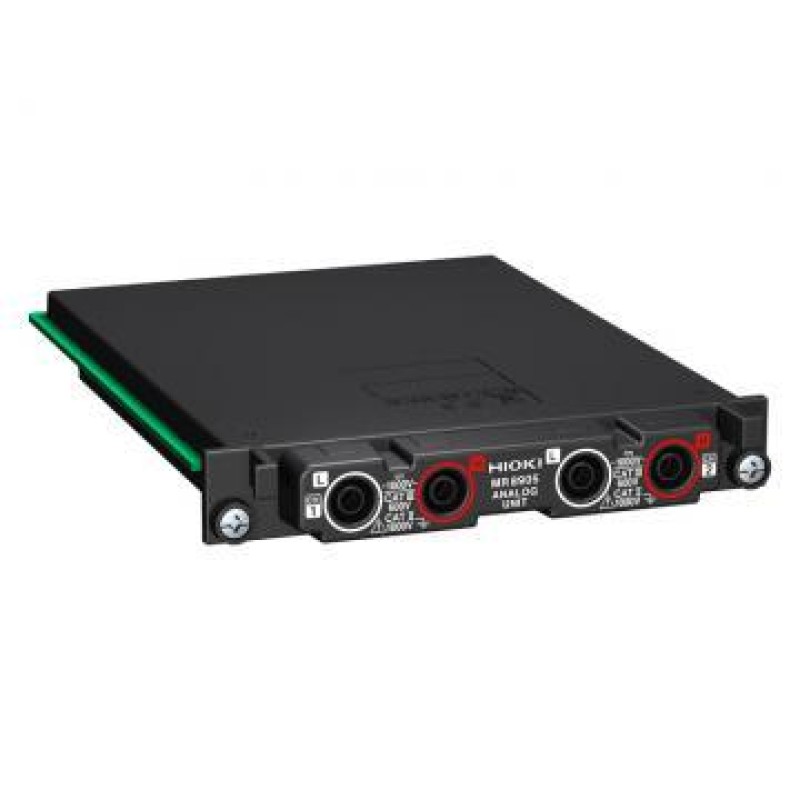

MR8905 - HIOKI 2 Channel High Voltage Input Module for (MR8875)
|
All products ship from Toronto, Canada by courier. Shipping is usually 1-10 days depending on your location in Canada. Shipping is free of charge. Orders received before 2:00pm (Mon-Fri) will be shipped on the same day (provided item is available in stock). You can pay with all major credit cards. On our side, we use PayPal to process all credit card transactions. But on your side, it will be like any regular purchase. You do not need to create a PayPal account. From the shopping cart, simply select "PayPal / Credit Card", then select "Pay with a credit or Visa debit card". Customer satisfaction guaranteed, or your money back. RCC Electronics is proudly Canadian. We have been selling the best test equipment since 1978. |
1000V High-voltage Direct Input Module for Memory Recorders
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| Functions | No. of channels: 2, switchable between instantaneous value and AC RMS value |
|---|---|
| Input connectors |
Banana connector (input impedance 4 MΩ, input capacitance less than 1 pF) Max. rated voltage to earth: CAT II 1000 V AC & DC, CAT III 600 V AC & DC (with input isolated from the main unit, the max. voltage that can be applied between input channel and chassis and between input channels without damage) |
| Measurement range |
500 mV to 50 V/div, 7 ranges, full scale: 20 div *The maximum displayable AC voltage is 700 Vrms when using 1/2 compression of the vertical axis. |
| Low-pass filter | 5/50/500/5 kHz, OFF |
| Resolution | 1/1250 of measurement range (using 16-bit A/D converter) |
| Highest sampling rate | 500 kS/s (simultaneous sampling across 2 channels) |
| Accuracy | ±0.5% f.s. (with 5 Hz filter ON) |
| RMS measurement |
RMS accuracy: ±1.5% f.s. (30 Hz up to but not including 1 kHz, sine wave input) or ±3% f.s. (1 kHz up to 10 kHz, sine wave input) Response time: 300 ms (filter off, rising from 0% to 90% f.s.) or 600 ms (filter off, falling from 100% to 10% f.s.) Crest factor 2 |
| Frequency characteristics | DC to 100 kHz -3 dB |
| Input coupling | DC/AC-RMS/GND |
| Max. allowable input | 1000 V DC, 700 V AC (the max. voltage that can be applied across input pins without damage) |
| Dimensions and mass | 119.5 mm (4.70 in)W × 18.8 mm (0.74 in)H × 151.5mm (5.96 in)D, 185 g (6.5 oz) |
| Accessories | None |
