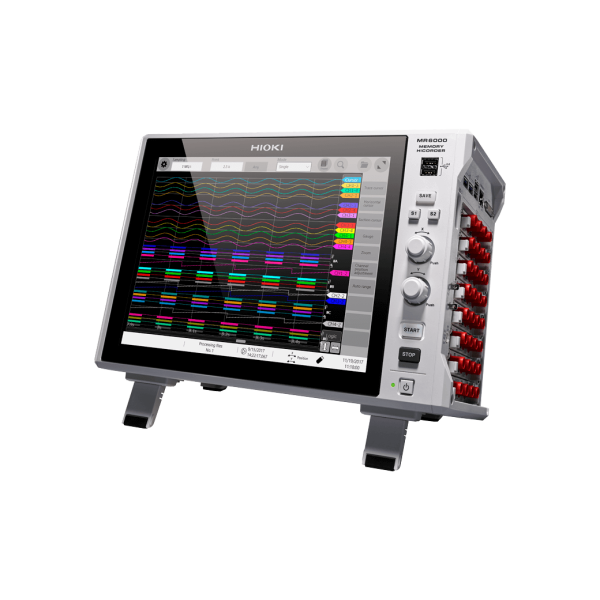

MR6000 - HIOKI High Speed Memory Recorder

Name: MR6000 - HIOKI High Speed Memory Recorder
Brand: HIOKI
SKU: MR6000
Price: 23091.60 CAD
Availability: OutOfStock

Pre-Order

Click Image for Gallery

Brand: HIOKI
Product Code: MR6000
Availability: Pre-order item. Add item to cart and ETA will be 2-4 weeks.
Specifications: Link to Data Sheet
Video: Link to Video

CAD 23,091.60

Qty: Add to Cart

Add to Enquiry List Add to Compare

Description

MR6000 - HIOKI High Speed Memory Recorder

Official HIOKI product information for MR6000 - HIOKI High Speed Memory Recorder.

Key Capabilities

Charge input terminal for piezoelectric type acceleration pickup
Isolated 2 channel input
Max. rated voltage to ground: 30 V AC or 60 V DC
Acceleration pickup with built-in preamplifier can also be directly input (BNC terminal)
Equipped with constant current source for driving preamplifier
Even measure general voltage signals with high, 16-bit A/D resolution
Equipped with anti-aliasing filter essential for FFT analysis
TEDS compatible, automatic sensitivity setting

Contact RCC Electronics for Canadian availability, configuration guidance and a formal quotation.

Technical Specifications

Measurement functions	Number of channels: 2, for acceleration measurement
Input terminals	Input for voltage input / preamplifier built-in: Metal BNC terminal (when voltage input: input resistance 1 MΩ, input capacity 200 pF or less); Charge input: Miniature connector (# 10-32 UNF); Max. rated voltage to earth: 30 VAC or 60 VDC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage) The voltage input terminal GND and the charge input terminal GND in the same channel are common
Adaptive converter	Charge output type acceleration detector, Accelerometer with built-in preamplifier
Measurement range; Charge input: (Miniature connector); Input for preamplifier built-in: (BNC terminal)	1 (m/s^2) to 200 k (m/s^2) f.s., 12 ranges × 6 kinds; Charge input sensitivity: 0.1 to 10 pC / (m/s^2); Preamplifier Built-in sensor input sensitivity: 0.1 to 10 mV / (m/s^2); Amplitude accuracy: ± 2% f.s.; Frequency characteristic: 1 (1.5) to 50 kHz -3 dB (charge input); Low pass filter: 500/5 kHz; Preamplifier power supply: 3.5 mA ± 20%. 22 V ± 5%; Maximum input charge: ± 500 pC (high sensitivity side 6 range), 50.000 pC (low sensitivity side 6 range)
Measurement range; Voltage input: (BNC terminal)	10 mV to 40 V f.s., 12 ranges, DC amplitude accuracy: ± 0.5% f.s.; Frequency characteristics: DC to 50 kHz -3 dB (when DC-coupled), 1 Hz to 50 kHz -3 dB (when AC-coupled); Low pass filter: 5/500/5 kHz, Input coupling: AC/DC/GND; Max. allowable voltage: 40 V DC
Measurement resolution	1/25000 of measurement range (using 16-bit A/D conversion)
Highest sampling rate	200 kS/s
Anti-aliasing filter	Built-in filter for eliminating aliasing phenomenon (aliasing distortion) in FFT operation (Cutoff frequency automatic setting / OFF)
TEDS	IEEE 1451.1.4 class 1 compatible (Reading sensor information, corresponding to automatic setting of sensitivity)
Dimensions and mass	106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 230 g (8.1 oz)

Official HIOKI product information
