SDM3055-SC - Siglent Digital Multimeter, Bench Type + Scanner Card (SC1016)
Product Code: SDM3055-SC
Availability: 1
*** Click here to view manufacturer specifications ***
Video

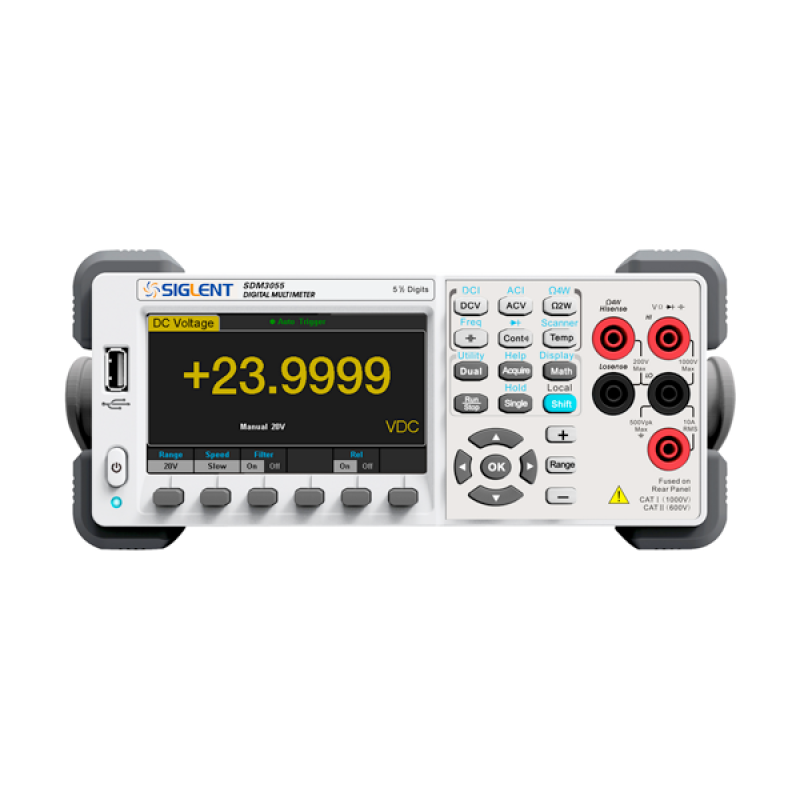

New Bench-Type Digital Multimeter
The new Siglent SDS3055/3055A is a new 5 ½ digit dual-display digital multimeter and features many math and statistical functions. It includes a variety of communication interfaces with easy setup, is equipped with a 4.3-inch TFT-LCD screen, and is designed for users who needs include high performance, multiple functions, and automatic measurements, is a high performance desktop multimeter.
Main Features
• True RMS 5 ½-digit digital multimeter
• Up to 150rdgs / s measurement speed
• 1Gb Nand Flash total capacity, mass storage settings and data files, supports expandable storage to external U disk
• Built-in thermocouple cold junction compensation, supports dual-display operation
• Chinese and English menus
• Built-in help system to facilitate information acquisition and document management
• Extensive math functions which include measuring the signal’s minimum / maximum / average / standard deviation. Also readings can be displayed in dBm, dB, Pass / Fail, relative value, histograms, trend curves, bar graphs, etc
• Supports remote command and control, compatible with the mainstream multimeter command scripts and comes standard with PC software EASYSDM
• 4.3 inch (480 * 272) true color TFT-LCD large screen display, and comes configured for a variety of communication interfaces with USB Device, USB Host.
