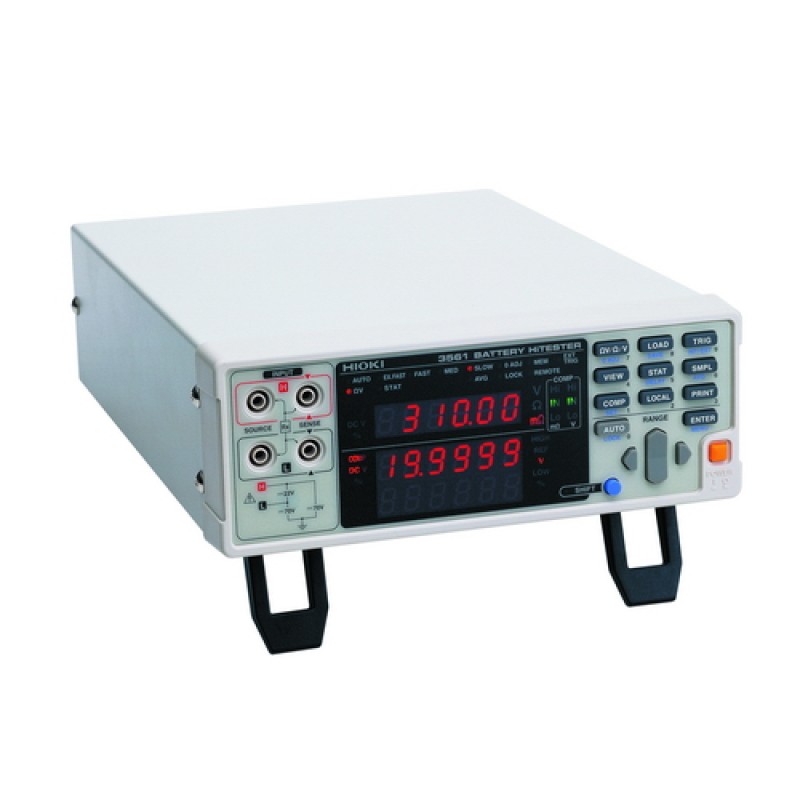

3561 - HIOKI Battery Tester - Small Batteries

Basic specifications (Accuracy guaranteed for 1 year)

Max. applied measurement voltage	±22 V DC ±70 V DC maximum rated voltage above ground
Resistance Measurement ranges	300 mΩ (Max. display 310.00 mΩ, resolution 10 μΩ) to 3 Ω (Max. display 3.1000 Ω, resolution 100 μΩ), 2 ranges Accuracy: ±0.5 % rdg. ±5 dgt. (Add ±3 dgt. for EX.FAST, or ±2 dgt. for FAST and MEDIUM) Testing source frequency: 1 kHz ±0.2 Hz, testing current: 10 mA (300 mΩ range), 1 mA (3 Ω range) Open-circut Voltage: 7 V peak7
Voltage Measurement ranges	DC 20 V, resolution 0.1 mV Accuracy: ±0.01 % rdg. ±3 dgt. (Add ±3 dgt. for EX.FAST, or ±2 dgt. for FAST and MEDIUM)
Display	31000 full digits (resistance), 199999 full digits (voltage), LED
Sampling rate	Four steps:   4 ms(Extra-FAST), 12 ms(FAST), 35 ms(Medium), 150 ms(Slow) (Typ., sampling time depends on supply frequency settings and function.)
Measurement time	Response time + sampling rate, approx. 3 ms for measurements (Response time depends on reference values and the measurement object.)
Comparator functions	Dual comparators independently judge Hi/IN/Lo states of resistance and voltage Setting: Upper and lower limit, Deviation (%) from a standard value Output: 3 levels (Hi, In, Lo), besides independent judgment results for resistance and voltage, ANDed calculation results Display, Dual audible indicato, or external I/O terminal, Open-collector (35 V, 50 mA DC max.)
Interface	External I/O, RS-232C, Printer (The 9670 via RS-232C), GP-IB (-01 suffix models only)
Power supply	100 to 240 V AC, 50/60 Hz, 30 VA max.
Dimensions, mass	215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.4 kg (84.7 oz)
Supplied accessories	Power cord ×1
