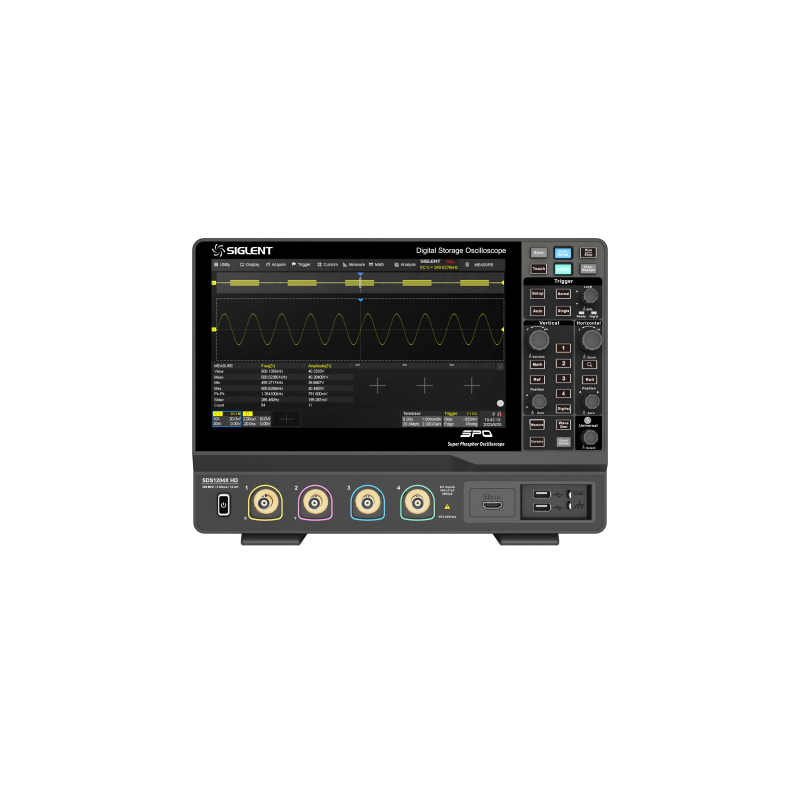

SIGLENT SDS1204X HD 200 MHz Oscilloscope

The SDS1204X HD is a four-channel, 12-bit benchtop oscilloscope for electronics design, debugging, education and mixed-signal analysis. Its 200 MHz bandwidth, up to 2 GSa/s real-time sampling and up to 100 Mpts record length help capture fast events and investigate longer acquisitions.

Core Capabilities

  • Four analog channels plus an external trigger input, with a 10.1-inch capacitive touchscreen.
  • Waveform capture up to 120,000 wfm/s in normal mode and 500,000 wfm/s in Sequence mode.
  • History, Search and Navigate, Mask Test, Bode Plot and Power Analysis support detailed troubleshooting.
  • Standard serial decoding includes I2C, SPI, UART, CAN, LIN, CAN FD and FlexRay.

Standard and Optional Capabilities

Standard oscilloscope functions include the serial decoding listed above. A 16-channel logic analyzer and a 25 MHz waveform generator require optional hardware; confirm the exact configuration before ordering.

Ordering from RCCE

Contact RCCE for Canadian availability, configuration guidance and a formal quotation.

Standard Accessories

  • USB cable ×1
  • Quick Start Guide ×1
  • Passive probes ×4 (one per analog channel)
  • Calibration certificate ×1
  • Power cord ×1

Optional Accessories

  • SAG1021I USB isolated arbitrary waveform generator module
  • SLA1016 16-channel logic analyzer
  • SDS1000XHD-PA power analysis software
  • DF2001A power-analysis deskew fixture
OSC | Exact Specifications
Analog Bandwidth 200 MHz
Input Channels 4
Max. Real-Time Sample Rate 2 GSa/s
ADC Resolution 12-bit
Max. Memory Depth 100 Mpts
Max. Waveform Capture Rate Up to 120000 wfm/s normal; 500000 wfm/s sequence
Form Factor Benchtop
Isolated Inputs No
Mixed Signal Capability Yes
OSC | Filter Facets
Bandwidth Range ≤200 MHz
Channel Count 4
Sampling Rate Range >1–4 GSa/s
ADC Resolution Class 12-bit
Memory Depth Range >14–140 Mpts
Form Factor Benchtop
