ODP6050B - SIGLENT 500 MHz Optically Isolated Voltage Probe

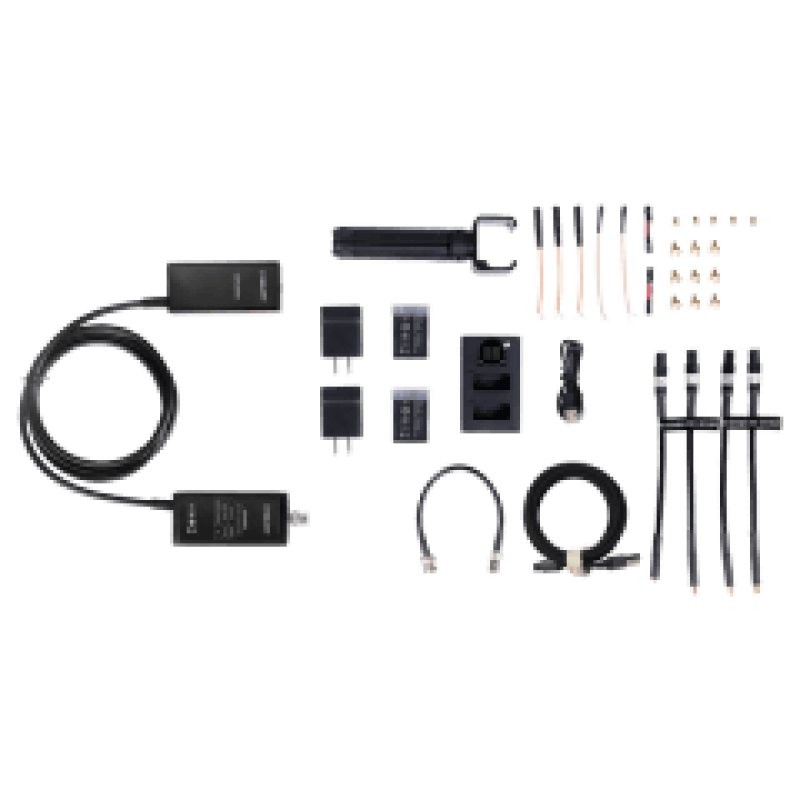

SIGLENT ODP6050B 500 MHz Optically Isolated Voltage Probe

The ODP6050B uses fiber-optic signal transmission to provide electrical isolation between the measurement input and oscilloscope. It is designed for floating high-voltage measurements and high-side gate-drive testing in Si, SiC and GaN power-electronics systems.

Key capabilities

• 500 MHz bandwidth with rise time of 0.7 ns or less
• Isolation voltage up to ±60 kV DC plus peak AC
• High common-mode rejection across the operating bandwidth
• Multiple interchangeable attenuators for different voltage ranges
• Replaceable battery system for continuous field operation
• Online calibration and zeroing without disconnecting the device under test

Typical applications include switch-mode power supplies, motor drives, renewable-energy inverters and wide-bandgap semiconductor testing. Contact RCCE for configuration guidance, compatible attenuators, Canadian pricing and availability.
