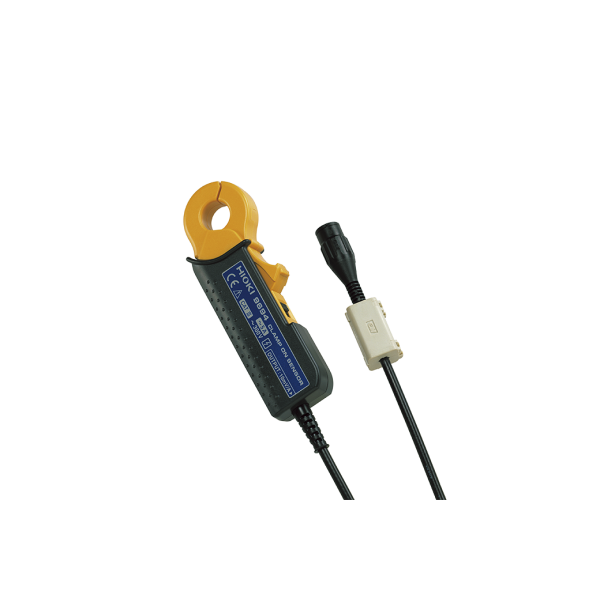

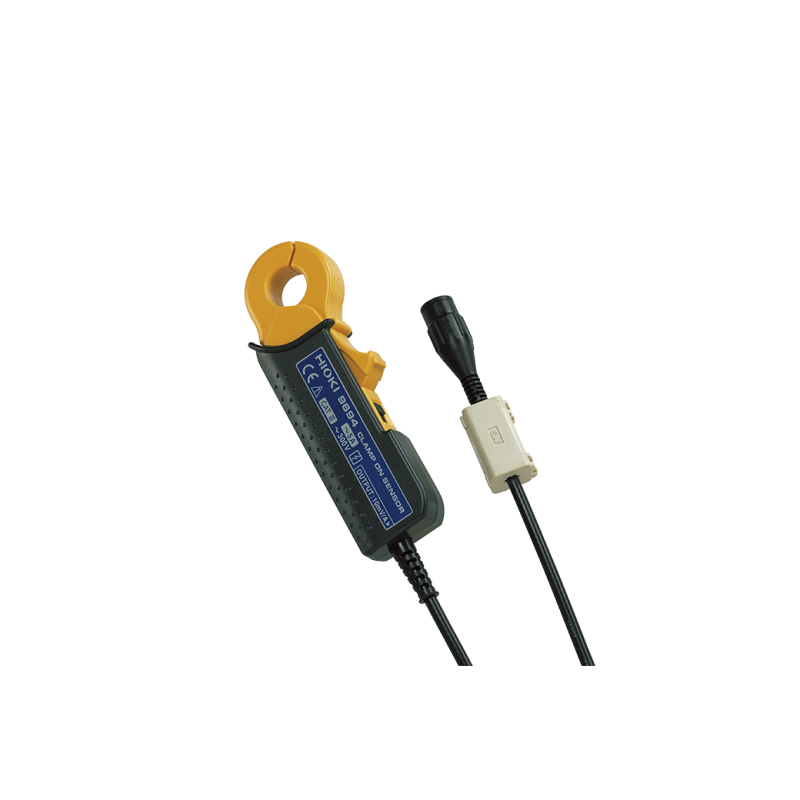

9694 - HIOKI 5A AC Clampon CT

9694 - HIOKI 5A AC Clampon CT
Click Image for Gallery
9694 - HIOKI 5A AC Clampon CT 9694 - HIOKI 5A AC Clampon CT
Brand: HIOKI
Product Code: 9694
Availability: In Stock
CAD 667.80
Qty: Add to Cart
Add to Enquiry List Add to Compare

9694 - HIOKI 5A AC Clampon CT supports accurate current measurement with compatible HIOKI instruments.

Clamp-on Sensors for the POWER QUALITY ANALYZER 3196 and CLAMP ON POWER HiTESTER 3169
For input of 5A CT, select our Model 9694, This sensor is are designed with a safety barrier to protect the user from being in direct contact with live conductors and completely meet all CE marking requirements.
Basic specifications
Rated input current 5 A AC
Rated output current 50 mV AC
Accuracy (at 45 to 66 Hz) Amplitude: ±0.3 % rdg. ±0.02 % f.s. , Full scale (f.s.) is the 3196 range value,
Phase: ±2° or less
Frequency characteristics 66 Hz to 5 kHz (±1 % or less from accuracy)
Max. allowable input continuous 50 A rms (45 to 66 Hz)
Max. circuit voltage 300 V AC rms (insulated wire)
Core jaw dia. Ø15 mm(0.59 in)
Dimensions, mass 46 mm(1.81 in)W × 135 mm(5.31 in)H × 21 mm(0.83 in)D, 230 g (8.1 oz), cord length: 3 m(9.84 ft)



Need help selecting the right HIOKI configuration? Contact RCC Electronics for Canadian application support and a quotation.
