CBS - Circuit Breaker Simulator

Circuit Breaker Simulator - CBS

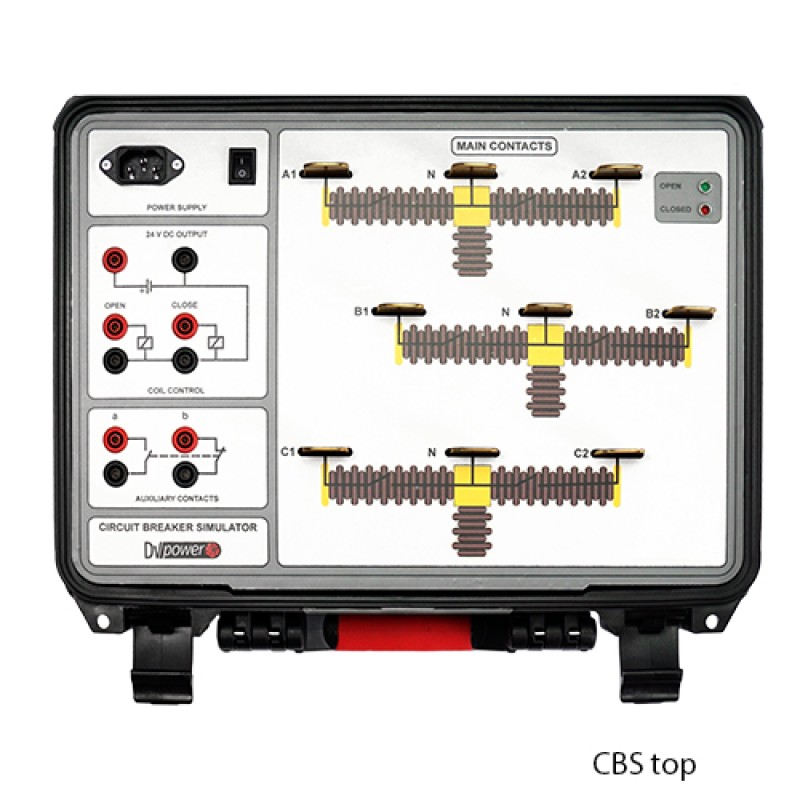

Circuit Breaker Simulator CBS is a compact, user-friendly device for training and demonstrating DV Power Circuit Breaker Analyzer & Timer CAT series.

CBS is a lightweight and portable solution that imitates live tank circuit breaker operation, making it suitable for product training, demonstrations, and practical familiarization with circuit breaker timing tests.

Features:

• User-friendly and educational design for product training and demonstration purposes.
• Simulation of circuit breaker timing test.
• Up to 6 main timing contacts.
• Breaker state indicator for Open and Close positions.
• 24 V DC output for coil supply.
• 52a and 52b auxiliary contacts outputs.
• Compact and lightweight design.

Specifications
