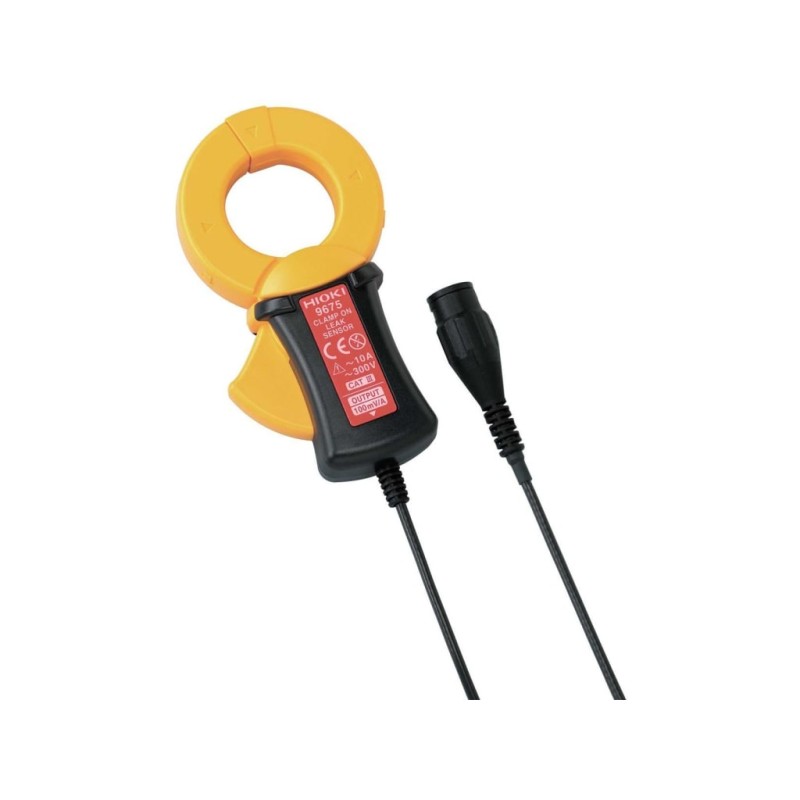

9675 - HIOKI Clamp On Leak Sensor
|
All products ship from Toronto, Canada by courier. Shipping is usually 1-10 days depending on your location in Canada. Shipping is free of charge. Orders received before 2:00pm (Mon-Fri) will be shipped on the same day (provided item is available in stock). You can pay with all major credit cards. On our side, we use PayPal to process all credit card transactions. But on your side, it will be like any regular purchase. You do not need to create a PayPal account. From the shopping cart, simply select "PayPal / Credit Card", then select "Pay with a credit or Visa debit card". Customer satisfaction guaranteed, or your money back. RCC Electronics is proudly Canadian. We have been selling the best test equipment since 1978. |
■ Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| Rated primary current | AC 10 A (for leak current measurement, 50/60 Hz) |
|---|---|
| Max. allowable input (45-66 Hz) | Max. 10 A of continuous input |
| Rated output current | AC 100 mV/A |
| Amplitude accuracy (45-66 Hz) | ±1.0 % rdg. ±0.005 % f.s. |
| Phase accuracy | ±5 ° (at 50 Hz or 60 Hz) |
| Frequency characteristics |
40 Hz to 5 kHz: ± 5% (Add to amplitude accuracy) |
| Max. rated voltage to earth |
40 Hz to 5 kHz: ± 5% (Add to amplitude accuracy) |
| Core diameter | φ 30 mm (1.18 in) |
| Dimensions and mass | 60 mm (2.36 in)W × 112.5 mm (4.43 in)H × 23.6 mm (0.93 in)D, 160 g (5.6 oz), Cord length: 3 m (9.84 ft) |
| Accessories | Instruction manual ×1 |
