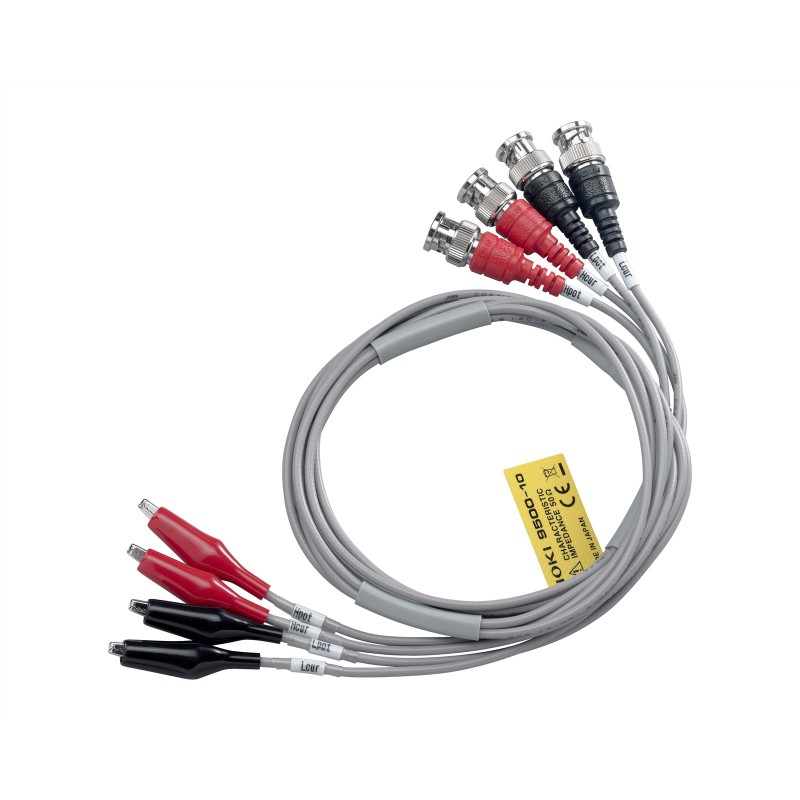

9500-10 - HIOKI 4 Terminal Lead for IM series LCR

HIOKI 9500-10 Four-Terminal Probe connects leaded components to compatible HIOKI LCR meters and impedance analyzers.

Key Features

• Measurement frequency range: DC to 200 kHz
• 1 m (3.28 ft) cable length
• 50-ohm characteristic impedance
• Accepts conductor diameters from 0.3 mm to 2 mm
• Four-terminal configuration supports stable component measurements

Confirm the supported frequency range of the connected instrument and test setup.
