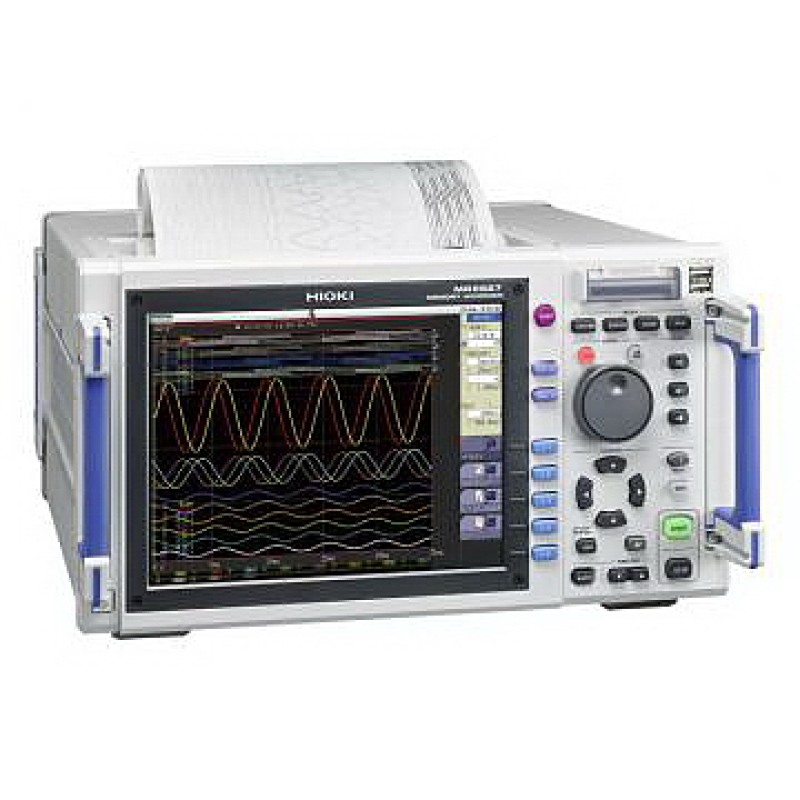

MR8827 - HIOKI High Speed Memory Recorder, 32 Analog Ch
HIOKI MR8827 - HIGH SPEED MEMORY RECORDER
Number of channels |
[16 analog input modules]: 32 analog channels +32 logic channels [14 analog input modules + 2 logic input modules]: 28 analog channels + 64 logic * For analog modules, channels are insulated vs. each other and vs. unit ground. For logic modules and integrated standard logic channels, all channels use the unit ground. |
---|---|
Measurement ranges (20 div full-scale) |
[Analog unit 8966]: 5 mV/div to 20 V/div, 12 ranges, resolution : 1/100 of range (using 12-bit A/D) [High resolution unit 8968]: 5 mV/div to 20 V/div, 12 ranges, resolution : 1/1600 of range (using 16-bit A/D) [Digital voltmeter unit MR8990]: 100 mV f.s. to 1000 V f.s., 5 ranges, resolution : 1/1000,000 of range (using 24-bit A/D) |
Max. allowable input | 500 V DC (using the MR8990), 400 V DC (using the 8966/8968) |
Frequency characteristics | DC to 5 MHz (-3 dB, using the 8966), DC to 100 kHz (-3 dB, using the 8968), N/A (using the MR8990) |
Time axis (Memory function) | 5 µs to 5 min/div, 26 ranges, at 100 points/div resolution |
Measurement functions | Memory (high-speed recording), Recorder (real-time recording), X-Y recorder, FFT |
Other functions | Numerical calculation, Waveform processing, Waveform judgment (at Memory, or FFT function) |
Memory capacity | 128M-words/ch (using 4 Analog channels) to 16M-words/ch (using 32 Analog channels), Total capacity 512MW memory |
Data storage media |
USB memory stick, CF card, Built-in SSD unit (option, 128GB) *Approx. 125 sec. when saving 100 MB of data *Data of 100 MB in size can record 16,000 div waveforms across 32 channels. |
Printing | [Built-in A4-size printer option]: 216 mm (8.50 in) × 30 m (98.43 ft), thermal paper roll, Recording speed : Max. 50 mm (1.97 in)/s |
Display | 10.4 inch TFT color LCD (SVGA, 800 × 600 dots) |
External interfaces |
LAN: 100BASE-TX USB 2.0 series A receptacle 2 port (for USB memory, mouse) USB 2.0 series B receptacle (for communication to PC, mass storage) |
Power supply | 100 to 240 V AC, 50/60 Hz (220 VA max., when using printer: 350 VA max.) |
Dimensions and mass | 401 mm (15.79 in)W × 233 mm (9.17 in)H × 388 mm (15.28 in)D (including protruding parts except handle), 12.6 kg (444.4 oz) (main unit only) |
Accessories | Instruction manual ×1, Power cord ×1, Application disk (CD-R) ×1, Input cord label ×1, Printer paper ×1 (when ordering printer unit), Roll paper attachment ×2 (when ordering printer unit) |
