SSA3032X-R - Siglent Real Time Spectrum Analyzer 9 kHz - 3.2 GHz

Pre-Order SSA3032X-R - Siglent Real Time Spectrum Analyzer 9 kHz - 3.2 GHz
Click Image for Gallery
SSA3032X-R - Siglent Real Time Spectrum Analyzer 9 kHz - 3.2 GHz
Brand: SIGLENT
Product Code: SSA3032X-R
Availability: Pre-order item. Add item to cart and ETA will be 2-4 weeks.
Specifications: Link to Data Sheet
Video: Link to Video
CAD 7,006.50
Qty: Add to Cart
Add to Enquiry List Add to Compare

All products ship from Toronto, Canada by courier. Shipping is usually 1-10 days depending on your location in Canada. Shipping is free of charge. Orders received before 2:00pm (Mon-Fri) will be shipped on the same day (provided item is available in stock).

You can pay with all major credit cards. On our side, we use PayPal to process all credit card transactions. But on your side, it will be like any regular purchase. You do not need to create a PayPal account. From the shopping cart, simply select "PayPal / Credit Card", then select "Pay with a credit or Visa debit card".

Customer satisfaction guaranteed, or your money back. RCC Electronics is proudly Canadian. We have been selling the best test equipment since 1978.


General Description


The SIGLENT SSA3000X-R real-time spectrum analyzers are powerful and flexible tools for complex RF signal monitor and analysis. With a capability of 40 MHz analysis bandwidth and 7.2 µs 100% POI, the analyzer can provide multi-dimensions data displays, advanced triggering, and RF data capturing, to solve modern RF spectrum challenges, like hopping frequency, conflict channel, spectrum interference, etc. They also provide standard tracking generator for network analysis, optional wide band digital modulation analysis, and EMI pre-compliance test.



Applications include broadcast monitoring/evaluation, cellular site, IoT, WiFi, Bluetooth surveying, research and development, education, production, and maintenance.

Features and Benefits
  • Spectrum Analyzer Frequency Range from 9 kHz up to 5.0 GHz / 7.5 GHz
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
  • Level Measurement Uncertainty < 0.7 dB (Typ.)
  • 1 Hz Minimum Resolution Bandwidth (RBW)
  • Preamplifier Standard
  • Tracking Generator Standard

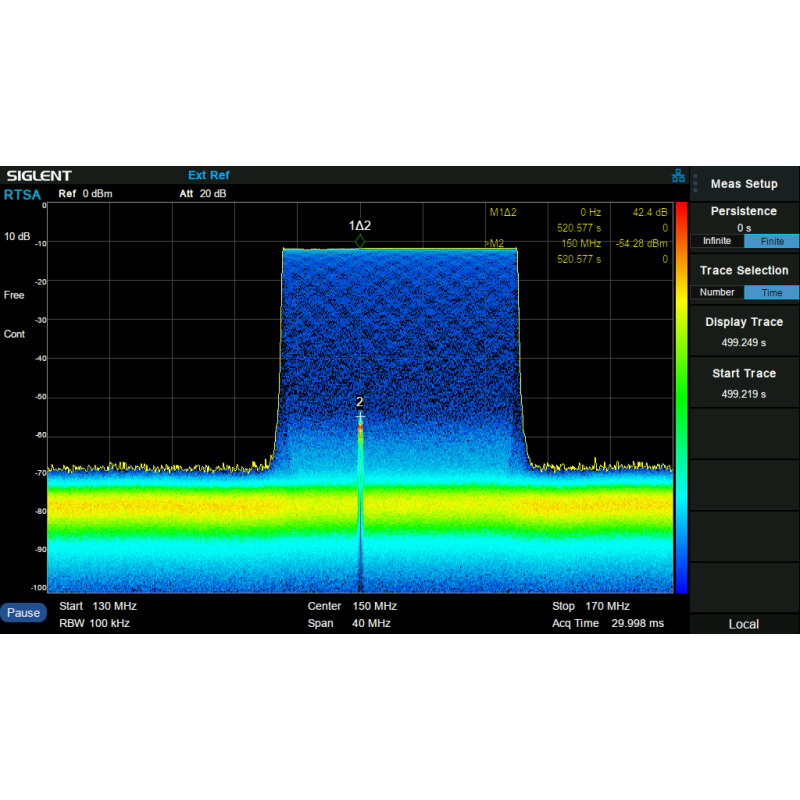

  • Up to 40 MHz Real Time Analysis Bandwidth
  • 100% POI 7.20 μs, Dynamic Range 60 dB
  • Multi-view for Density, Spectrogram, PvT, and multi trigger and FMT
  • Modulation Analysis up to 40 MHz BW (Opt.)
  • Reflection Measurement Kit (Opt.)
  • EMI Filter and Quasi-Peak Detector Kit(Opt.)
  • Advanced Measurement Kit (Opt.)
  • 10.1 inch Multi-Touch Screen , Mouse and Keyboard supported
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation
