SDS5034X - Siglent Digital Storage Oscilloscope

SDS5034X - Siglent Digital Storage Oscilloscope
Brand: SIGLENT
Product Code: SDS5034X
Availability: In Stock
Specifications: Link to Data Sheet
Video: Link to Video
CAD 5,729.40
Qty: Add to Cart

SIGLENT SDS5034X is a 350 MHz, four-channel digital oscilloscope for waveform analysis and electronic design.

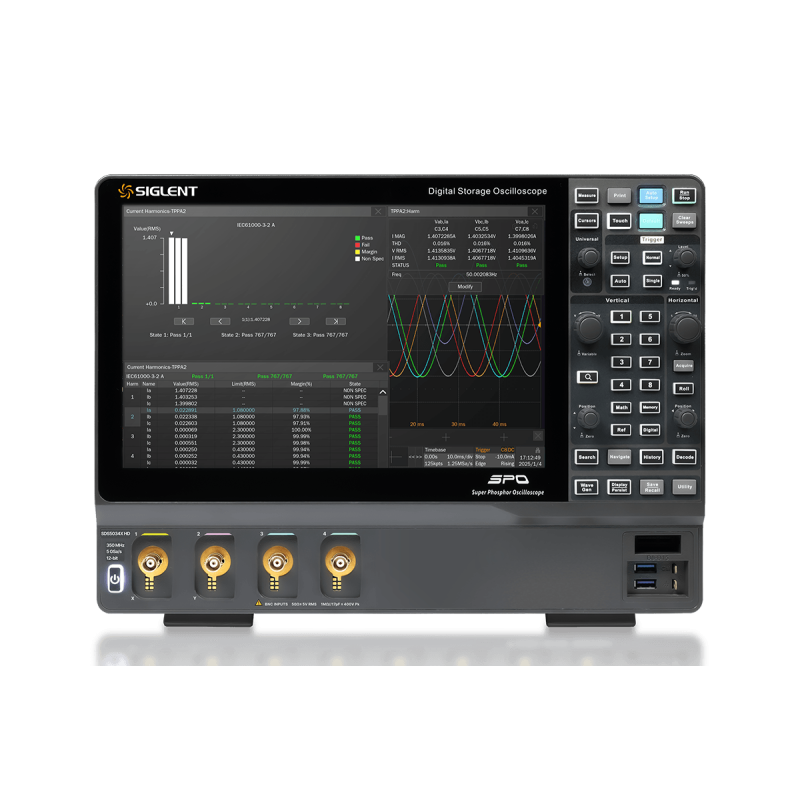

SIGLENT SDS5034X Digital Oscilloscope

The SDS5034X combines four analog channels, up to 5 GSa/s sampling and up to 250 Mpts memory in a benchtop instrument for debugging, design validation and automated testing.

Core Capabilities

  • 350 MHz analog bandwidth with four analog channels and an external trigger input.
  • Up to 110,000 waveforms per second in normal mode and 500,000 in Sequence mode.
  • History, Search and Navigate tools, plus a 10.1-inch multi-touch display.
  • Standard I2C, SPI, UART, CAN and LIN serial triggering and decoding.

Standard and Optional Capabilities

Additional serial protocols, mixed-signal hardware and the waveform generator are optional. Select probes and analysis options according to the application.

Ordering from RCCE

Contact RCCE for Canadian availability, configuration guidance and a formal quotation.

Standard Accessories

  • USB cable ×1
  • Quick Start Guide ×1
  • SP3050A passive probes ×4
  • Calibration certificate ×1
  • Power cord ×1

Optional Accessories

  • SP6150A high-speed passive probe
  • SAP1000 or SAP2500 active probe
  • SAP2500D differential probe
  • DPB1300 differential probe
  • SCP5030 current probe
OSC | Exact Specifications
Analog Bandwidth 350 MHz
Input Channels 4
Max. Real-Time Sample Rate 5 GSa/s interleaved; 2.5 GSa/s non-interleaved
ADC Resolution 8-bit
Max. Memory Depth 250 Mpts interleaved; 125 Mpts/channel non-interleaved
Max. Waveform Capture Rate Up to 110000 wfm/s normal; 500000 wfm/s sequence
Form Factor Benchtop
Isolated Inputs No
Mixed Signal Capability Yes
OSC | Filter Facets
Bandwidth Range >200–500 MHz
Channel Count 4
Sampling Rate Range >4–10 GSa/s
ADC Resolution Class 8-bit
Memory Depth Range >140–400 Mpts
Form Factor Benchtop
