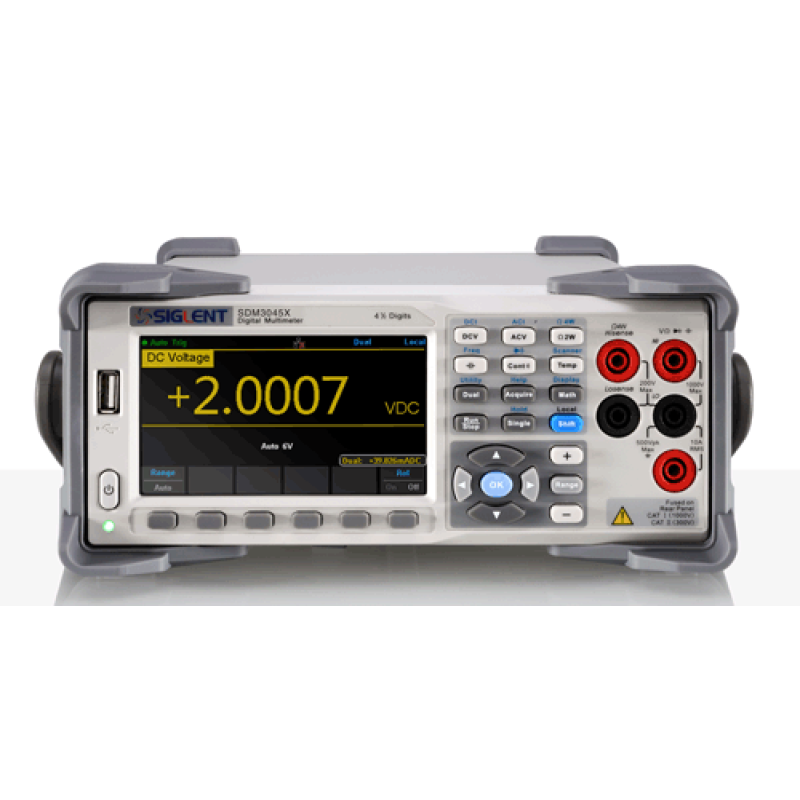

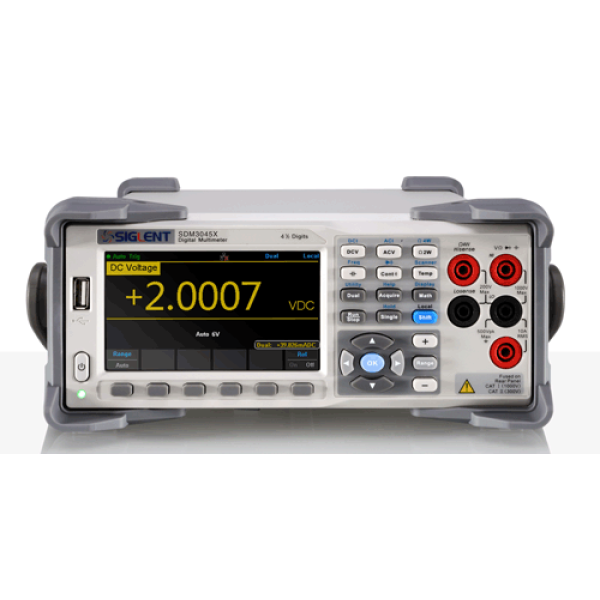

SDM3045X - Siglent Digital Multimeter, Bench Type

Click Image for Gallery

Brand: SIGLENT
Product Code: SDM3045X
Availability: 6

CAD 550.62

Qty: Add to Cart

Add to Enquiry List Add to Compare

Description

Siglent SDM3045X

SDM3045X is a 4½ digit digital (60000 count) multimeter incorporating a dual-display and is especially well suited for the needs of high-precision, multifunction and automatic measurement.

Features:

Real 4½ digit (60000 count) readings resolution
Up to 150 rdgs/s measurement speed
True-RMS AC Voltage and AC Current measuring
1 Gb NAND flash size, Mass storage configuration files and data files
Built-in cold terminal compensation for thermocouple
With easy, convenient and flexible PC software: EasyDDM
Standard interface: USB Device, USB Host, LAN
4.3 inch (480 * 272) true color TFT-LCD large screen display,
USB & LAN remote interfaces support common SCPI command set. Compatible with other popular DMMs on the market.

Specifications:

Model	SDM3045X
DC voltage measurement	200mV，2V，20V，200V，1000V
DC current measurement	200μA，2mA，20mA，200mA，2A，10A
AC voltage measurement	True-RMS，200mV，2V，20V，200V，750V
AC current measurement	True-RMS，20mA ，200mA，2A，10A
2,4-wire resistance measurement	200Ω，2K，20K，200K，2M，10M，100MΩ
Capacitance measurement	2nF，20nF，200nF，2μF，20μF，200μF，10000μF
Connectivity Test	Range fixed 2KΩ
Diode test	range fixed 2V
Frequency measurement	20Hz ~ 1MHz
Period measurement	1μs ~ 0.05 s
Temperature measurement	support thermocouple, RTD temperature sensor Maximum input voltage 1000V
Maximum input voltage	1000V
Configuration Interface	USB Device，USB Host，LAN	USB Device，USB Host，LAN，GPIB

Accessoires included:

120V AC NA power cord
One pair of leads，One pair of alligator clips
USB Cable
A QuickStart Guide
CD inlcuding Software / manual
