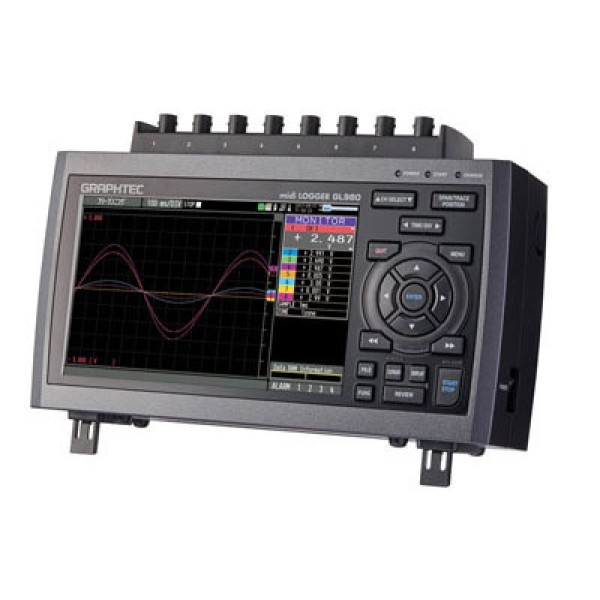

GL980 - Graphtec 8 Channel Data Logger

GL980 - Graphtec 8 Channel Data Logger

GL980 - Graphtec 8 Channel Data Logger
GL980 - Graphtec 8 Channel Data Logger
Brand: GRAPHTEC Instruments
Product Code: GL980 - Graphtec Portable 8 Channel High Speed Data Logger
Availability: 2-4 Weeks
*** Click here to view manufacturer specifications ***
Price: CAD 5,453.00

GL980  -  8 Channel  High Speed  Data Logger

High Speed 1 MS/s Simultaneous Sampling with Isolated Inputs

GL980 is equipped with an isolated input mechanism to protect signals from interferrences caused by noise from other channels. 16-bit A/D converter adopted to achieve hi-speed and hi-resolution measurement.

Simultaneous sampling
GL980 utilizes simultaneous sampling to eliminate slowdown in sampling rate by using multiple A/D converters in simultaneous sampling method. Eight individual A/D converters in each channel sustains the maximum sampling speed for all eight channels to measure high speed rapid voltage fluctuation and multi-channel vibration measurement.

Measure repetitive waveforms such as vibration with instantaneous value and effective value.

Measures either instantaneous value or effective value (RMS). By utilizing the trigger feature to measure abnormal spikes in the continuous waveform, users can measure vibration abnormalities repeatedly.

Scaling (Engineering unit) function

Measured voltage value can be converted to a specified engineering unit. The value can be displayed with the physical measurement value of the sensor and be saved into the data file with the converted values.

Calculation function between channels

Four arithmetic operations (Addition, subtraction, multiplication and division) are available using two analog input channels.


Large Easy-to-read 7-inch LCD

Monitor data in multiple methods in addition to digital value display and full waveform display screen.

Digital monitor screen

Displays current data in digital value and results of real time statistical calculation. (Function: Maximum, Minimum, Peak-to-peak, and Average)
When displays only current data, it can be shown in 1, 2, 4 or 8 zones.

Quick and Easy Set Up Process

Simple operation with cursor and enter keys, and menu-driven operation with six pre-set menu screens: AMP, DATA, DISP, TRIG, I/F (Interface) and OTHER.

Other helpful functions

Delivers reliable measurements out at a location with unstable power supply.
Equipped with three types of options for power source, AC adapter, DC input, and battery pack. With a battery pack, GL980 runs continuously for approximately 2 hours. If an AC power failure occurs, it will automatically switch from the AC adapter to the battery pack. Additionally, when the voltage of the battery pack reaches low, measurement is automatically stopped after saving the data file preserving the accumulated data. (Requires two battery packs (B-569 option) installed.)
