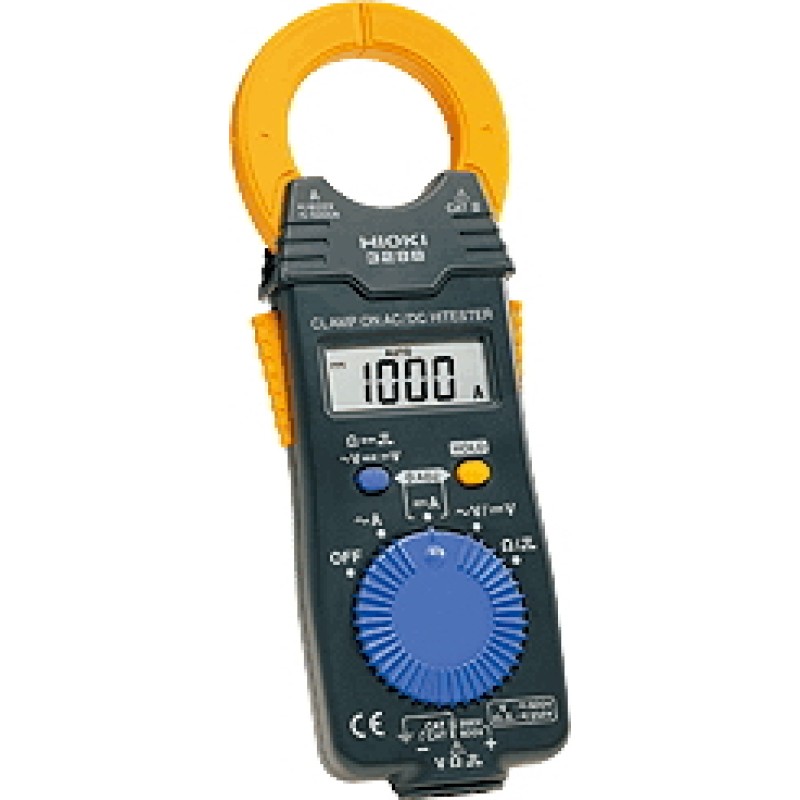

3288 - HIOKI 1000A AC/DC Clampon Tester

3288 - HIOKI 1000A AC/DC Clampon Tester

3288 - HIOKI 1000A AC/DC Clampon Tester
3288 - HIOKI 1000A AC/DC Clampon Tester
Brand: HIOKI
Product Code: 3288
Availability: In Stock
*** Click here to view manufacturer specifications ***
Price: CAD 385.00
Qty:


All products ship from Toronto, Canada by courier. Shipping is usually 1-10 days depending on your location in Canada. Shipping is free of charge. Orders received before 2:00pm (Mon-Fri) will be shipped on the same day (provided item is available in stock).

You can pay with all major credit cards. On our side, we use PayPal to process all credit card transactions. But on your side, it will be like any regular purchase. You do not need to create a PayPal account. From the shopping cart, simply select "PayPal / Credit Card", then select "Pay with a credit or Visa debit card".

Customer satisfaction guaranteed, or your money back. RCC Electronics is proudly Canadian. We have been selling the best test equipment since 1978.



Compact & easy, one-touch maintenance on all types of AC/DC equipment
  • Use the 3288 for high current measurements such as UPS emergency batteries and train motors
  • A slim core of only 10 mm(0.39 in) for easy clamping even in crowded wiring
Basic specifications
AC Current range 100.0 or 1000 A AC, 2 ranges (±1.5 % rdg. ±5 dgt. at 50 or 60Hz), Average rectifier effective value
DC Current range 100.0 or 1000 A DC, 2 ranges (±1.5 % rdg. ±5 dgt.)
AC Voltage range 4.200 to 600 V AC, 4 ranges (±2.3 % rdg. ±8 dgt. at 50 or 60Hz), Average rectifier effective value
DC Voltage range 420.0 mV to 600 V DC, 5 ranges (±1.3 % rdg. ±4 dgt.)
Other functions Resistance: 420.0 to 42.00 M-ohm, 6 ranges, Accuracy: ±2.0 % rdg. ±4 dgt. (at 420 to 420 k-ohm range), Continuity: 420.0 ohm (Buzzer sounds at approx. 50 ohm or less)
Analog output None
Frequency characteristics
(at AC current / voltage)
AC current: 10 to 500 Hz, AC voltage: 30 to 500 Hz
Display section Digital / LCD, maximum 4199 dgt.
Sampling rate 2.5 times/sec
Max. circuit voltage 600 V AC rms (insulated wire)
Power supply CR2032 (3 VDC) × 1, Continuous use 60 hours
Core jaw dia. Ø 35 mm(1.38 in)
Dimensions, mass 57 mm(2.24 in)W × 180 mm(7.09 in)H × 16 mm(0.63 in)D, 150 g (5.3 oz)
Accessories TEST LEAD 9208 (1), CARRYING CASE 9398 (1)
